Aeris

RECOTHERM LTD Stand: D51
Aeris
Aeris
Aeris

For over 40 years Recotherm have used their engineering expertise to focus exclusively on pool hall environmental control using controlled fresh air. Our high-grade design and construction experience mean we can deliver on any application, supported by extensive on-site experience in this industry only.

The latest fan design technology

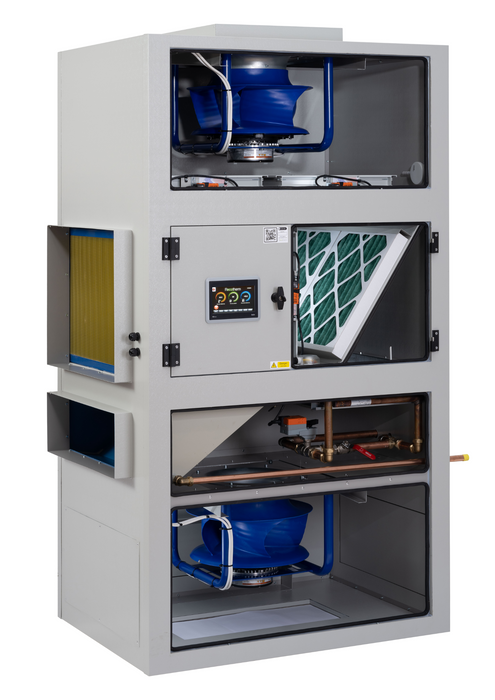

The Aeris range has a constantly variable flow design featuring the very latest energy capture monitoring and fan design technologies. Variable speed fans have been part of building regulation requirements for the last 9 years and they’ve been a feature on Recotherm units for over 20 years due to the energy savings of up to 80% when full inverter fans are used.

Breathe the Difference

Enhanced air quality is achieved by using 100% fresh air flow to control humidity, resulting in an increased sense of freshness and reduced chemical odours:

  • Warm, humid air is drawn from the pool hall via scroll-less fans controlled by Real Speed Controllers giving greater efficiency
  •
  • A recuperator is a passive device that collects heat from the return air, and exchanges it to the incoming fresh air, boosting the air on temperature onto the coil
  • Units provide controlled fresh outside air as well as controlled humid exhaust air, diluting the pool hall atmosphere to create a fresher environment
  • Using fresh air to dehumidify the pool hall environment removes the requirement for any energy hungry processes to achieve a similar result.
  • Fully modulating heating valves and dampers ensure that only the required amount of energy is used to maintain perfect pool hall conditions

100% variable, 100% efficient

All units are fitted with a fully functioning BEMS (Building Energy Management System) microprocessor meaning that fans, valves & dampers are always operating to maximum efficiency to ensure minimal energy usage. In addition, return air is monitored via a sensor to constantly vary the speed of the fans, which ensures that only the precise amount of energy is used to maintain the perfect pool hall conditions at all times.

To maximise the energy saving potential of fresh air ventilation and variable speed/inverter technologies, our fans, dampers and valves constantly modulate seamlessly as the load varies to ensure they are working at optimal efficiency.
