Aqualyser : Water treatment made easy
)
)
)
)
Aqualyser® – Automated Pool Water Treatment
Salt chlorination with ORP & pH control

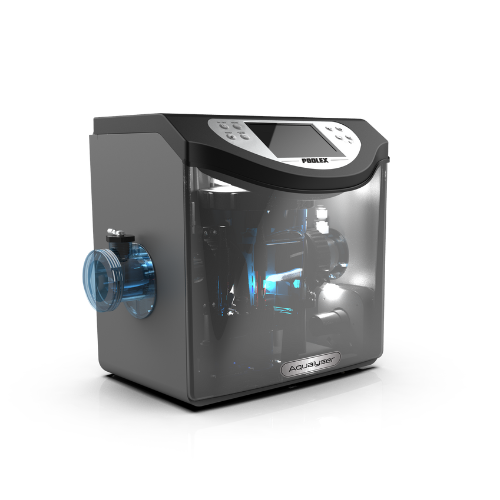

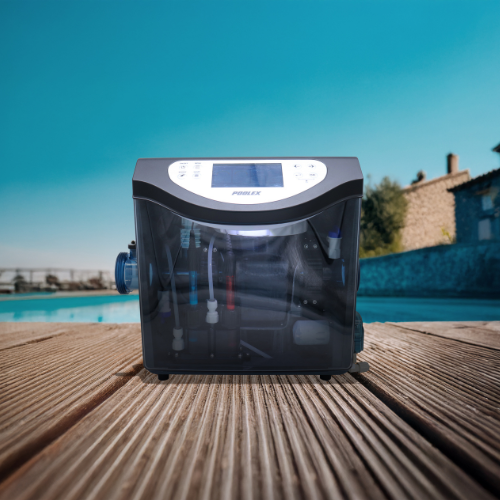

The Aqualyser® is an advanced combined electrolyser designed for fully automated and precise pool water treatment for pools up to 90 m³. Equipped with ORP (Redox) and pH probes, it continuously monitors water parameters and automatically adjusts chlorine production and pH regulation according to the actual needs of the pool.
Smart and reliable automation
-

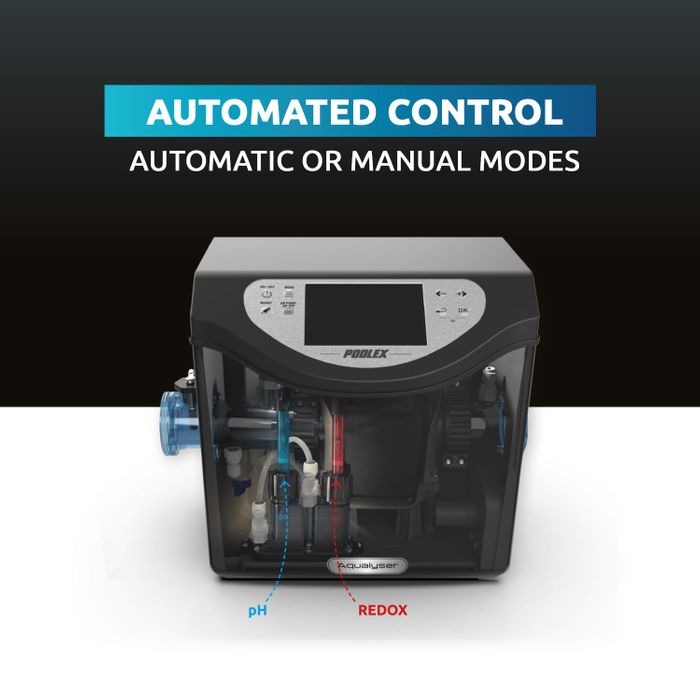

Continuous ORP and pH monitoring
-
Automatic regulation of chlorine production and pH balance
-
Stable, clean and healthy water with reduced maintenance
Key technical data
Salt chlorination
-
Pool volume: up to 90 m³
-
Chlorine production: up to 20 g/h
-
Adjustable output: 4 / 8 / 12 / 16 / 20 g/h
-
Salinity range: 2.7 to 5 g/L
-
Cell lifespan: titanium cell, 10,000 hours
-
Polarity inversion: adjustable (4 / 6 / 8 h)
pH regulation
-
Dosing pump flow rate: 0.2 L/min
-
Automatic pH minus control
Connectivity & control
-
WiFi connectivity
-
Mobile application control
-
Cloud data synchronisation & OTA updates
-
Operating modes: ORP / Timer / Manual / pH minus
Electrical & hydraulic
-
Max power consumption: 150 W
-
Standby consumption: 5 W
-
Hydraulic connection: Ø 50 mm
-
Pump relay control: dry contact

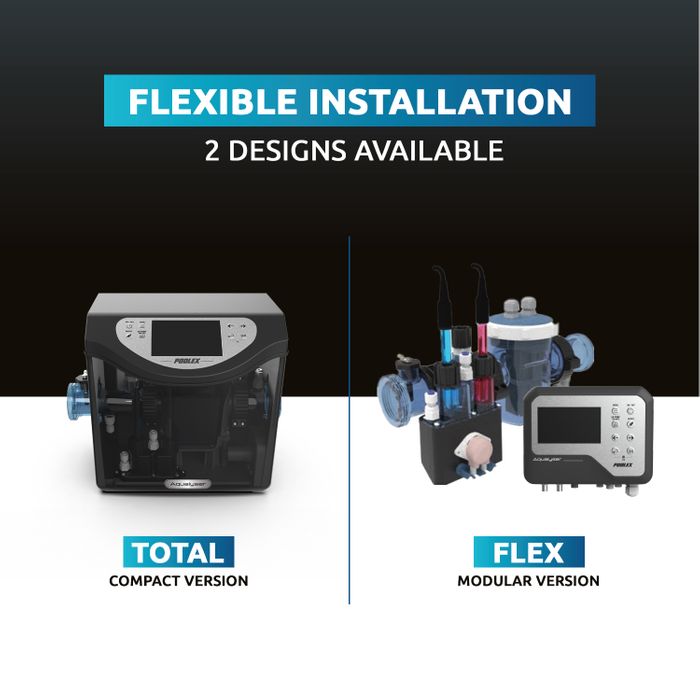

Versions available
-
Total: integrated unit
-
Flex: modular configuration
Efficient and connected water treatment
By combining salt electrolysis, ORP & pH regulation and smart connectivity, Aqualyser delivers a reliable, automated and easy-to-use solution for optimal pool water quality.
